LiFeO4 Battery Series

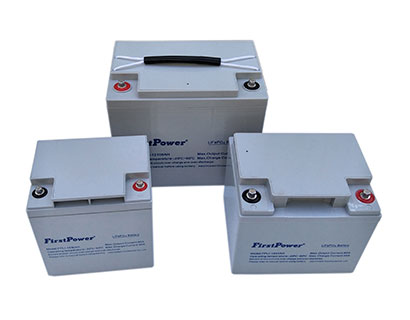

LiFeO4 Battery ( Maintenance-free )

Replace lead-acid batteries

Advantages

High Power Density: Light weight, 1/3 weight of lead-acid batteries

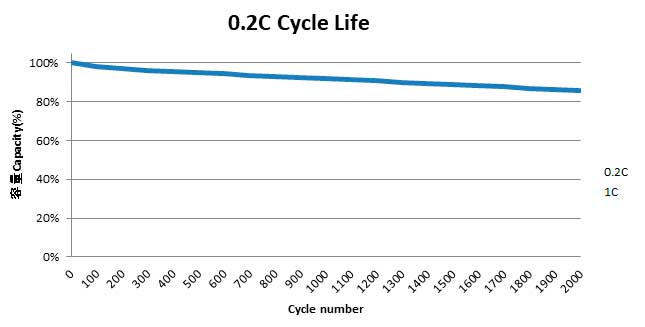

Long Cycle Life: Under the condition of standard discharge, the cycle life of the battery can be ≥2000 circles
High power, high current charge and discharge(1C). High power battery can be customized）
Low self-discharge rate : ≤5%/ month
Safe and Reliable: No floating metal lithium assures a safer usage. Built-in BMS, with overload, overcharge, over-discharge, high temperature protection, and balance functions.
Friendly environment

General Technical Specifications

Model	Nominal Voltage (V)	Capacity (AH)	Dimensions（mm/in）								Terminal		Weight ±4%(Kg)
			Length		Width		Height		Total Height		Terminal		Weight ±4%(Kg)
			mm	in	mm	in	mm	in	mm	in	Type	Position	Kg	Lbs
FPLI-1220AH	12	20	181	7.13	77	3.03	167	6.57	167	6.57	T8	C	2.6	5.73
FPLI-1230AH	12	30	165	6.50	125	4.92	174	6.85	174	6.85	T8	C	3.8	8.38
FPLI-1240AH	12	40	195	7.68	131	5.16	158	6.22	158	6.22	T9	D	4.8	10.58
FPLI-1250AH	12	50	198	7.80	166	6.54	169	6.65	169	6.65	T9	D	5.8	12.79
FPLI-1260AH	12	60	228	8.98	138	5.43	215	8.46	215	8.46	T9	C	6.9	15.21
FPLI-1275AH	12	75	348	13.70	167	6.57	179	7.05	179	7.05	T9	C	8.5	18.74
FPLI-12100AH	12	100	260	10.24	168	6.61	215	8.46	215	8.46	T9	C	11.5	25.35
FPLI-12120H	12	120	306	12.05	168	6.61	214	8.43	214	8.43	T9	C	13.5	29.76
FPLI-12140AH	12	140	328	12.91	171	6.73	215	8.46	215	8.46	T9	C	15.5	34.17
FPLI-12160AH	12	160	328	12.91	171	6.73	235	9.25	235	9.25	T9	C	17.8	39.24
FPLI-12180AH	12	180	409	16.10	176	6.93	223	8.78	223	8.78	T11	C	19.8	43.65
FPLI-12200AH	12	200	342	13.46	172	6.77	280	11.02	280	11.02	T11	C	22	48.50
FPLI-12220AH	12	220	483	19.02	170	6.69	240	9.45	240	9.45	T11	C	24	52.91
FPLI-12240AH	12	240	532	20.94	207	8.15	224	8.82	224	8.82	T11	F	26.2	57.76
FPLI-12280AH	12	280	494	19.45	206	8.11	209	8.23	235	9.25	T11	E	30.5	67.24
FPLI-12300AH	12	300	522	20.55	239	9.41	222	8.74	222	8.74	T11	E	32.5	71.65
FPLI-12350AH	12	350	521	20.51	269	10.59	222	8.74	222		T11	E	37.5	82.67
