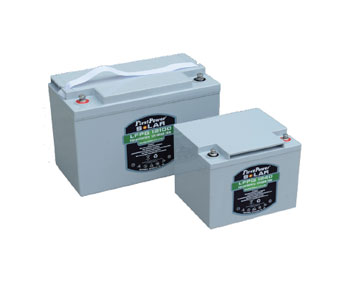

Gel ( Gelled Electrolyte ) Battery Series
Voltage: 2V, 6V, 12V  Capacity: FP Type: 12V12AH~12V28AH ; LFP Type: 12V33AH ~ 12V250AH; CFP Type: 2V100AH~2V3000AH   Charge voltage: Cycle use: 2.30~2.35V/cell; Float use: 2.25~2.30V/cell   Charge current: The initial current less then 0.3CA

Gel Battery Summary

The FirstPower gel battery uses the sealed gel technology and is designed for high reliable, maintenance-free power for renewable energy applications. Depending on the advantage gel technology, optimum grid and plate design, the FirstPower gel battery offers highest power and reliability for your equipments.

More-->

Typical Applications

  • Water pumping
  • Cathodic protection
  • Communications
  • Solar & Windsystem
  • Electric powered vehicles
  • Golf cars
  • Commercial deep cycle applications
  • Power plant
  • UPS systems

Test report: LFPG12100FT Cycle Test @40% D.O.D.

General Technical Specifications

Model Nominal
Voltage
(V)
Capacity
(AH)
Internal
Resistance
(mOhm)
Dimensions(mm/in) Terminal Weight
±4%(Kg)
Length Width Height Total Height
mm in mm in mm in mm in Type Position Kg Lbs

FPG12180

12

18

17.5

181

7.13

77

3.03

153

6.02

167

6.57

T8

D

5.4

11.90

FPG12240

12

24

20

166

6.54

175

6.89

112

4.41

125

4.92

T8

D

7.8

17.20

FPG12280

12

28

15

8.4

18.52

FPG12240A

12

24

14

165

6.5

125

4.92

162

6.38

175

6.89

T8

D

8.8

19.40

FPG12280A

12

28

12

9.2

20.28

LFPG6100

6

100

3.3

194

7.64

170

6.69

205

8.07

205

8.07

T9

A

15.8

34.83

LFPG6190

6

190

2.4

243

9.57

187

7.36

253

9.96

276

10.87

T11

B

31.5

69.45

LFPG1233

12

33

14.5

195

7.68

130

5.12

146

5.75

158

6.22

T9

C

10.2

22.49

LFPG1240

12

40

9.5

197

7.76

165

6.5

155

6.1

170

6.69

T9

D

12.8

28.22

LFPG1255

12

55

8.5

229

9.02

138

5.43

201

7.91

215

8.46

T9

C

17.5

38.58

LFPG1265

12

65

7.5

350

13.78

167

6.57

155

6.1

179

7.05

T9

C

21.5

47.40

LFPG1270

12

70

7.8

260

10.24

168

6.61

202

7.95

215

8.46

T9

C

25

55.12

LFPG1275

12

75

7.5

260

10.24

168

6.61

202

7.95

215

8.46

T9

C

25.5

56

LFPG1280

12

80

7

306

12.05

169

6.65

202

7.95

215

8.46

T9

C

28

61.73

LFPG1290

12

90

5.5

31

68.34

LFPG12100

12

100

5.2

330

12.99

171

6.73

197

7.76

215

8.46

T9

C

32

70.55

LFPG12110

12

110

5

330

12.99

171

6.73

217

8.54

235

9.25

T9

C

33

72.75

LFPG-12120

12

120

5.5

409

16.1

176

6.93

205

8.07

225

8.86

T11

C

38

83.75

LFPG12140

12

134

4.7

342

13.46

172

6.77

262

10.31

280

11.02

T11

C

41

90.39

LFPG12150

12

150

4.6

485

19.09

172

6.77

220

8.66

240

9.45

T11

C

45

99.21

LFPG12160

12

160

4.5

530

20.87

207

8.15

204

8.03

214

8.43

T11

F

54.5

120.15

LFPG12180

12

180

4

57

125.66

LFPG12200

12

200

3.5

522

20.55

238

9.37

203

7.99

221

8.7

T11

E

65

143.30

LFPG12250

12

250

3

521

20.51

269

10.59

203

7.99

221

8.7

T11

E

75.5

166.45

LFPG1250FT

12

50

7.2

277

10.91

106

4.17

221

8.7

221

8.7

T9

E

17

37.48

LFPG12100FT

12

100

6.5

506

19.92

110

4.33

224

8.82

239

9.41

T9

E

30.5

67.24

LFPG12100AFT

12

100

9

395

15.55

110

4.33

271

10.67

286

11.26

T9

E

28.5

62.83

LFPG12110AFT

12

110

6.5

31

68.34

LFPG12150FT

12

150

5.5

551

21.69

110

4.33

271

10.67

287

11.3

T11

E

46

101.41

LFPG12180FT

12

180

3.5

546

21.5

125

4.92

308

12.13

323

12.72

T11

E

55

121.25

CFPG2100

2

100

0.9

171

6.73

72

2.83

206

8.11

209

8.23

T10

G

6

13.23

CFPG2150

2

150

0.7

171

6.73

102

4.02

206

8.11

211

8.31

T10

G

8.5

18.74

CFPG2200

2

200

0.95

173

6.81

109

4.29

330

12.99

365

14.37

T10

G

14

30.86

CFPG2300

2

300

0.8

171

6.73

151

5.94

330

12.99

365

14.37

T10

G

19.5

42.99

CFPG2400

2

400

0.65

210

8.27

171

6.73

330

12.99

365

14.37

T10

H

26.5

58.42

CFPG2500

2

500

0.55

241

9.49

171

6.73

330

12.99

365

14.37

T10

H

31.5

69.45

CFPG2600

2

600

0.5

302

11.89

175

6.89

330

12.99

365

14.37

T10

H

36.5

80.47

CFPG2800

2

800

0.4

410

16.14

175

6.89

330

12.99

365

14.37

T10

I

50

110.23

CFPG21000

2

1000

0.3

475

18.7

175

6.89

330

12.99

365

14.37

T10

I

62

136.69

CFPG21500

2

1500

0.22

400

15.75

350

13.78

345

13.58

382

15.04

T10

J

95

209.44

CFPG22000

2

2000

0.2

490

19.29

350

13.78

345

13.58

382

15.04

T10

K

140

308.65

CFPG23000

2

3000

0.13

710

27.95

350

13.78

345

13.58

382

15.04

T10

K

192

423.29

CFPG2200S

2

200

0.9

206

8.11

103

4.06

355

13.98

390

15.35

T10

G

15.5

34.17

CFPG2250S

2

250

0.8

206

8.11

124

4.88

355

13.98

390

15.35

T10

G

19

41.89

CFPG2300S

2

300

0.75

206

8.11

145

5.71

355

13.98

390

15.35

T10

G

21

46.30

CFPG2350S

2

350

0.7

206

8.11

124

4.88

471

18.54

506

19.92

T10

G

24.5

54.01

CFPG2400S

2

400

0.6

206

8.11

145

5.71

471

18.54

506

19.92

T10

G

28

61.73

CFPG2500S

2

500

0.5

206

8.11

166

6.54

471

18.54

506

19.92

T10

G

32.5

71.65

CFPG2600S

2

600

0.45

206

8.11

145

5.71

646

25.43

681

26.81

T10

G

41.5

91.49

CFPG2800S

2

800

0.4

210

8.27

191

7.52

646

25.43

681

26.81

T10

H

60

132.28

CFPG21000S

2

1000

0.33

233

9.17

210

8.27

646

25.43

681

26.81

T10

H

67

147.71

CFPG21200S

2

1200

0.28

275

10.83

210

8.27

646

25.43

681

26.81

T10

H

87

191.80

CFPG21500S

2

1500

0.22

275

10.83

210

8.27

796

31.34

831

32.72

T10

H

106

233.69

CFPG22000S

2

2000

0.2

399

15.71

210

8.27

772

30.39

807

31.77

T10

H

150

330.69

CFPG22500S

2

2500

0.17

487

19.17

212

8.35

772

30.39

807

31.77

T10

I

187

412.26

CFPG23000S

2

3000

0.13

576

22.68

212

8.35

772

30.39

807

31.77

T10

I

223

491.63

We are updating the datasheet now. Pls contact the concerned person for details.
